Applications

Gas Chromatography > GC Analyzers

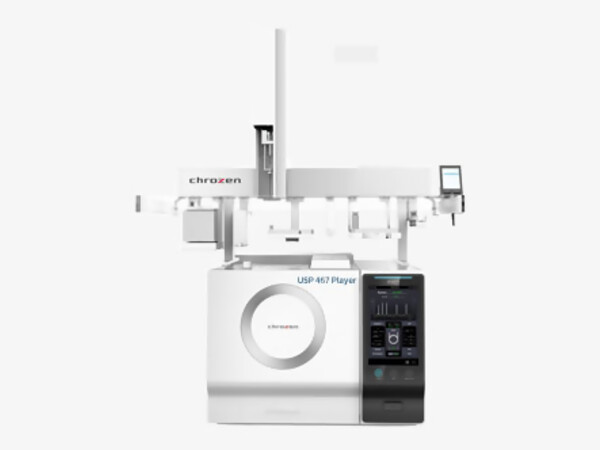

ChroZen USP 467 Player (Residual Solvent Analyzer)

Gas Chromatography > GC Analyzers

ChroZen USP 467 Player (Residual Solvent Analyzer)

ChroZen USP 467 Player is the optimized system for determination of residual solvents by fully complying with USP 467 and verifies the validity of analysis results for each analysis method.

ChroZen USP 467 Player is the optimized system for determination of residual solvents by fully complying with USP 467 and verifies the validity of analysis results for each analysis method.

United Stated Pharmacopeia (USP) classifies the residual solvents into Class Ⅰ,  Class Ⅱ and Class Ⅲ depending on their risk to human health and USP 467 test  method describes all the requirements for the analysis of residual solvents.

Results

Chromatogram of Residual Solvents in Class 2A

Among 3 classes, class 2 is classified into 3 types. (2A, 2B, 2C) and USP 467 describes the methods for 2A and 2B only. The chromatogram above shows the analysis result for residual solvents in Class 2A and 2B. The resolution of Acetonitrile and Methylene chloride was 2.48, which sufficiently satisfies the requirement (not less than 1).

ChroZen USP 467 Player

Total Dream Solution includes:
1. Smart Hardware Platform (Based on ChroZen GC)
2. Smart ChroZen PAL 3 Series Ⅱ
3. Smart Software Control (Chromatography Data System) with Method Setup
4. All Related Consumables and Accessories
5. Columns - 624MS Column : midpolarity Crossbond phase fused silica
                       30 m x 0.32 mm x 1.80 μm

ChroZen USP 467 Player includes ChroZen PAL RSI autosampler which can be adapted or extended to provide the combined injection techniques such as headspace injection,  liquid injection, SPME (Solid Phase Micro  Extraction) and ITEX (In-Tube Extraction) dynamic  headspace in one instrument.

Target Coverage

Contact Us

Applications

Manufacturer Product Name Title
YOUNG IN Chromass ChroZen USP 467 Player (Residual Solvent Analyzer)

Manufacturer : YOUNG IN Chromass

Product Name : ChroZen USP 467 Player (Residual Solvent Analyzer)

Analysis of Residual Solvents by ChroZen GC with Headspace According to USP 467
downloadDownloadviewerView
YOUNG IN Chromass ChroZen USP 467 Player (Residual Solvent Analyzer)

Manufacturer : YOUNG IN Chromass

Product Name : ChroZen USP 467 Player (Residual Solvent Analyzer)

BTEX_Analysis_Static_Headspace_vs_Dynamic_Headspace
downloadDownloadviewerView
YOUNG IN Chromass ChroZen USP 467 Player (Residual Solvent Analyzer)

Manufacturer : YOUNG IN Chromass

Product Name : ChroZen USP 467 Player (Residual Solvent Analyzer)

Analysis of Residual Solvent in Food Packaging Material by Headspace-GC
downloadDownloadviewerView

Catalogs

Manufacturer Product Name Title
YOUNG IN Chromass ChroZen USP 467 Player (Residual Solvent Analyzer)

Manufacturer : YOUNG IN Chromass

Product Name : ChroZen USP 467 Player (Residual Solvent Analyzer)

ChroZen USP 467 Player
downloadDownloadviewerView
